2/4-CH Wall Amplifier with Android & Tuya

Description:

This 2/4 channel small Bluetooth multi-home audio system equipped with USB/TF an power 2 to 8 pieces of speakers in your home or small commercial area. It uses a high- efficiency class-D amplifier for a maximum output of 2*25/4*25 watts, low-impedance speakers. The cool display shows relevant track music info. Plus, you can control everything-seek, change tracks, and adjust the volume.

Features:

  • Support Tuya APP(BA-225ADIT/BA-425ADIT)
  • With RJ45 interface (2-CH) for both hard cat 5 cable or WIFI connection
  • With Tuya ZIGBEE gateway(BA-225ADT3/BA-425ADT3)
  • Adopt Bluetooth and WIFI wireless connection technology
  • Standard 86 Mounted on the wall for easy control
  • Rs485 protocol for integration (2-CH)
  • Download APP like Spotify, Pandora etc. to it to play music from internet
  • Support triggering doorbell function

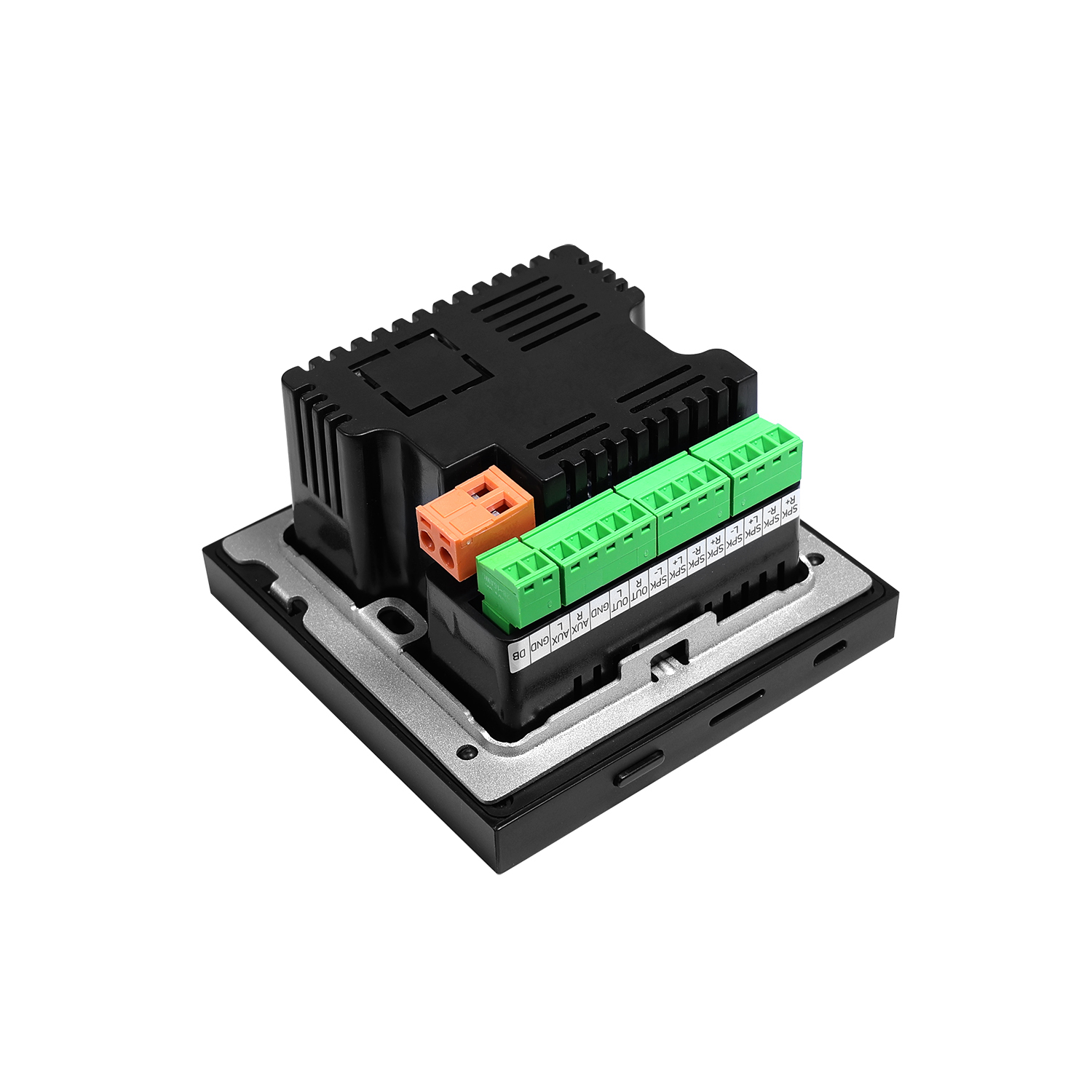

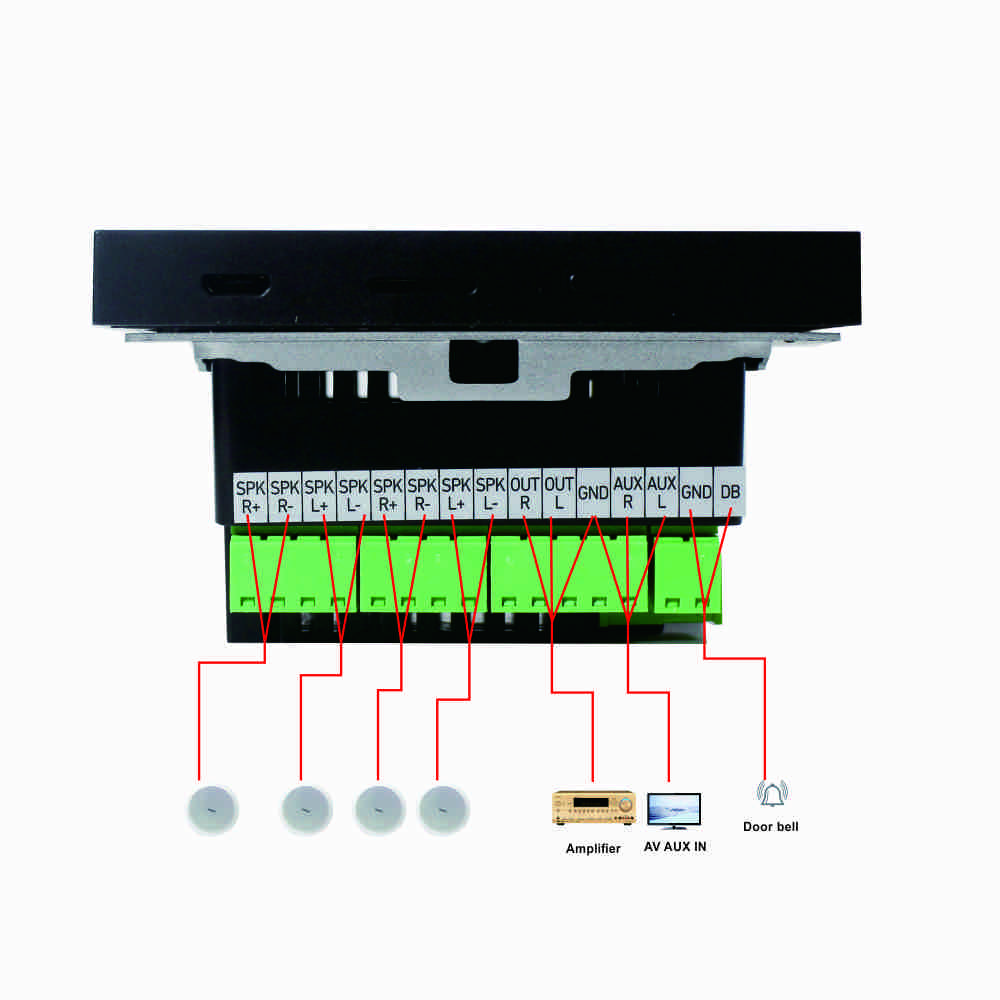

  • Support audio input and output function with secure and fast connect phoenix connectors
  • Support TF card and USB interface, USB can be connected to the hard disk
  • Suitable for homes, commercial areas, kid’s room, etc
Model BA-225ADITW/BA-225ADITB BA-425ADITW/BA-425ADITB BA-225ADiW/BA-225ADiB BA-425ADiW/BA-425ADiB BA-225ADT3W/BA-225ADT3B BA-425ADT3W/BA-425ADT3B
Product Type Wall Amplifier with Android & Tuya Wall Amplifier with Android Wall Amplifier with Android, Zigbee Gateway & Tuya
Output Power 2*25W 4*25W 2*25W 4*25W 2*25W 4*25W
Speaker Impedance 4-8ohm
System Android 11
Body Memory 1GB
Expand TF Card Memory 8GB, Scalable to 32G
Network WIFI
CPU Cortex 1.2G (Quad core)

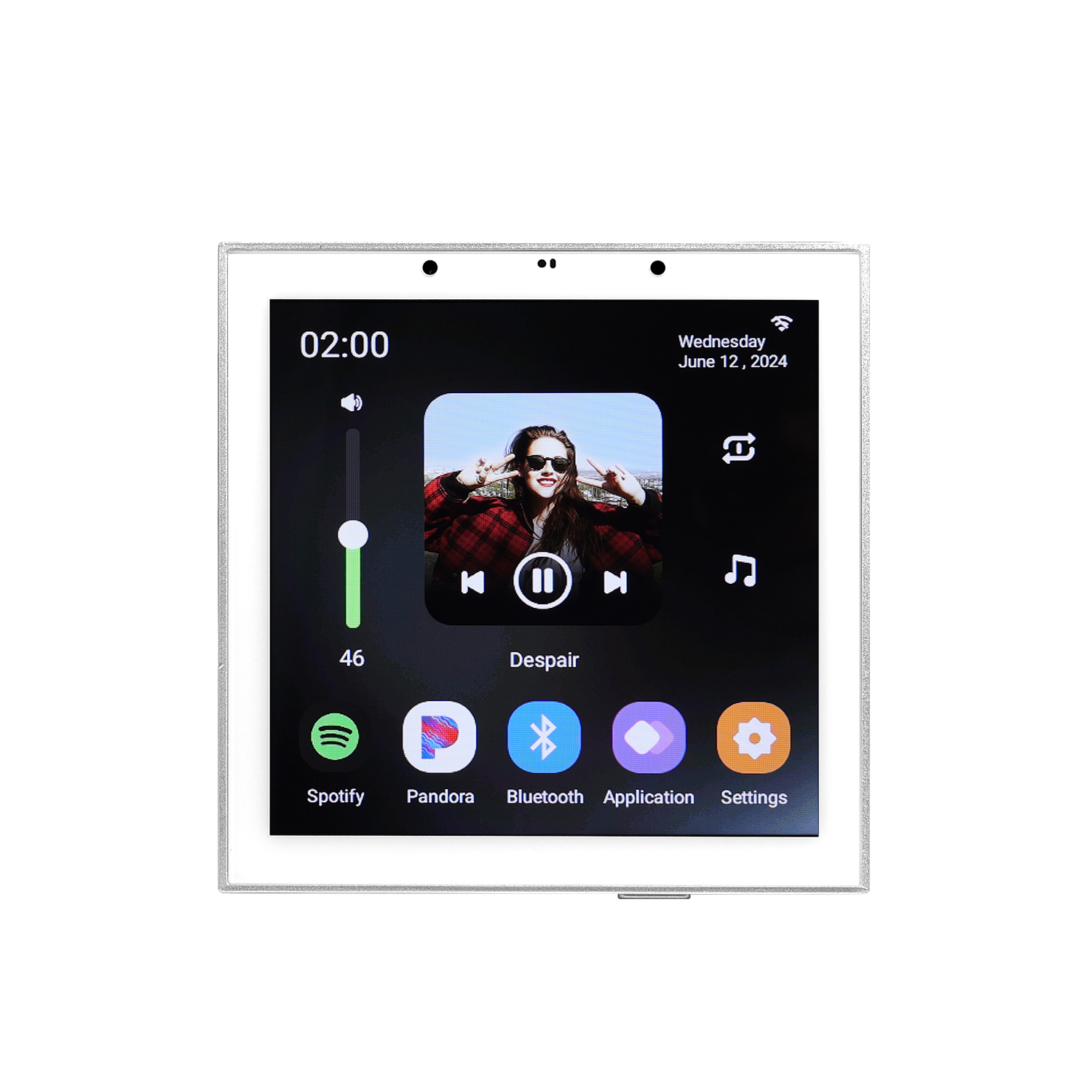

Display 4inch capacitive touch screen
Resolution 480*480 IPS
Bluetooth Wireless Range ≤10M
USB OTG USB
THD 0.03% (1W.1KHZ)
Frequency Response 20 Hz-20 kHz (+/-2dB)
SNR 98db
Music Format Mp3, WMA, WAV, AAC, WAW, APE, OGG, etc.
Video Format MPEG-1/2/3/4, RM/RMVB, WMV, MOV, MK, VOB, AVI, 3GP, H, 264, etc.
Power Requirements 110-250VAC
Audio Aux audio input and output
Color White/Black
Dimension 86*86*38mm 86*86*50mm 86*86*38mm 86*86*50mm 86*86*38mm 86*86*50mm
Net Weight 0.2kg
