Description:

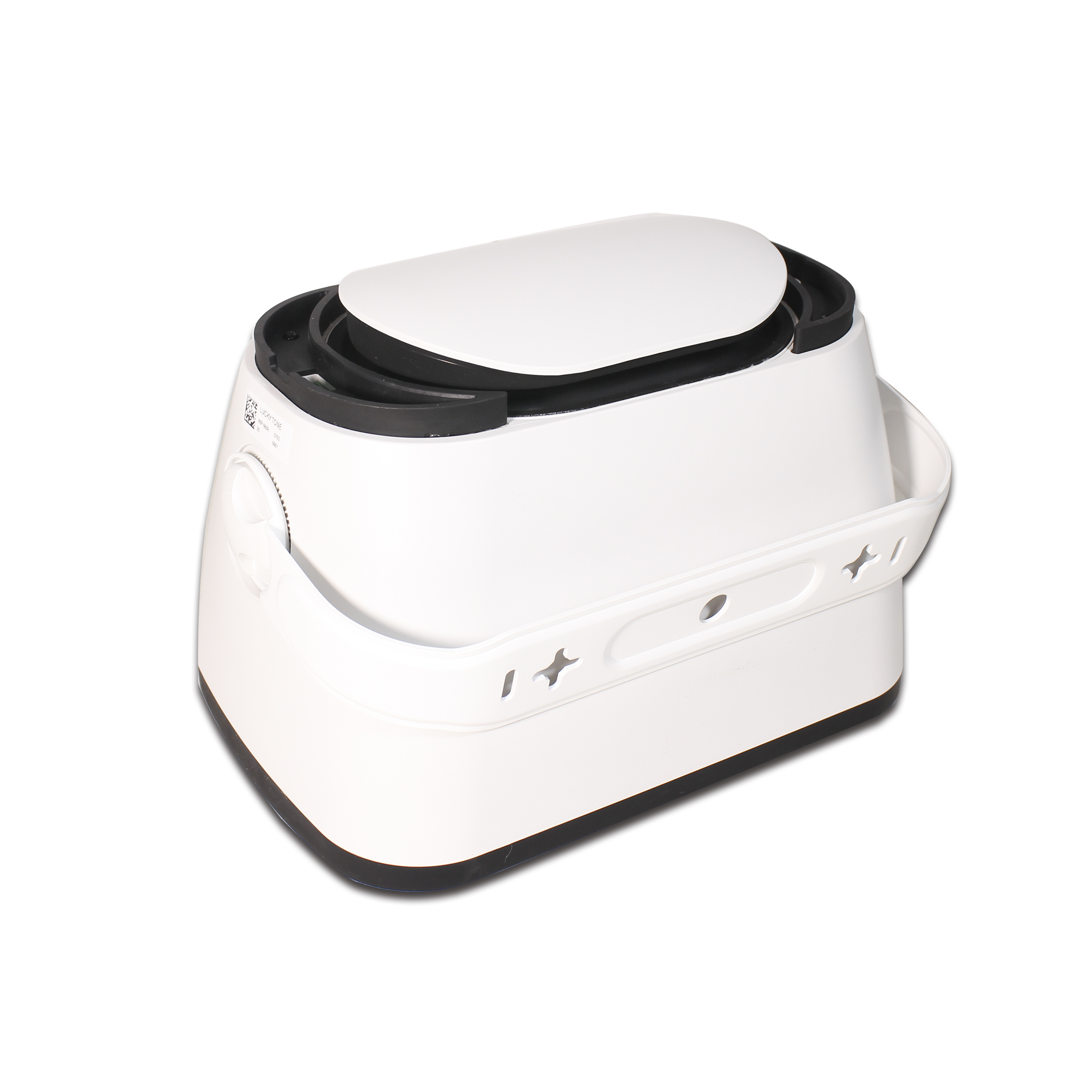

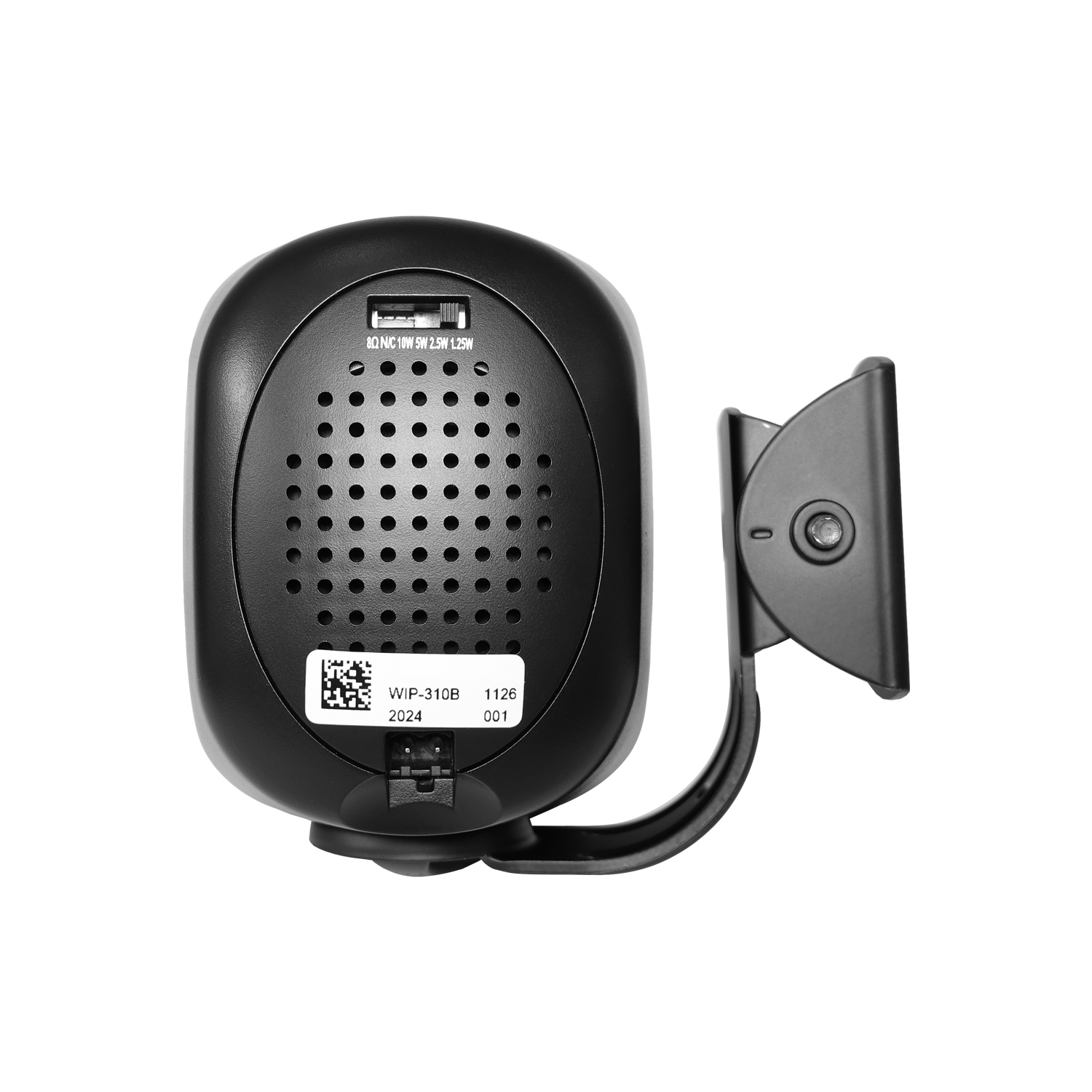

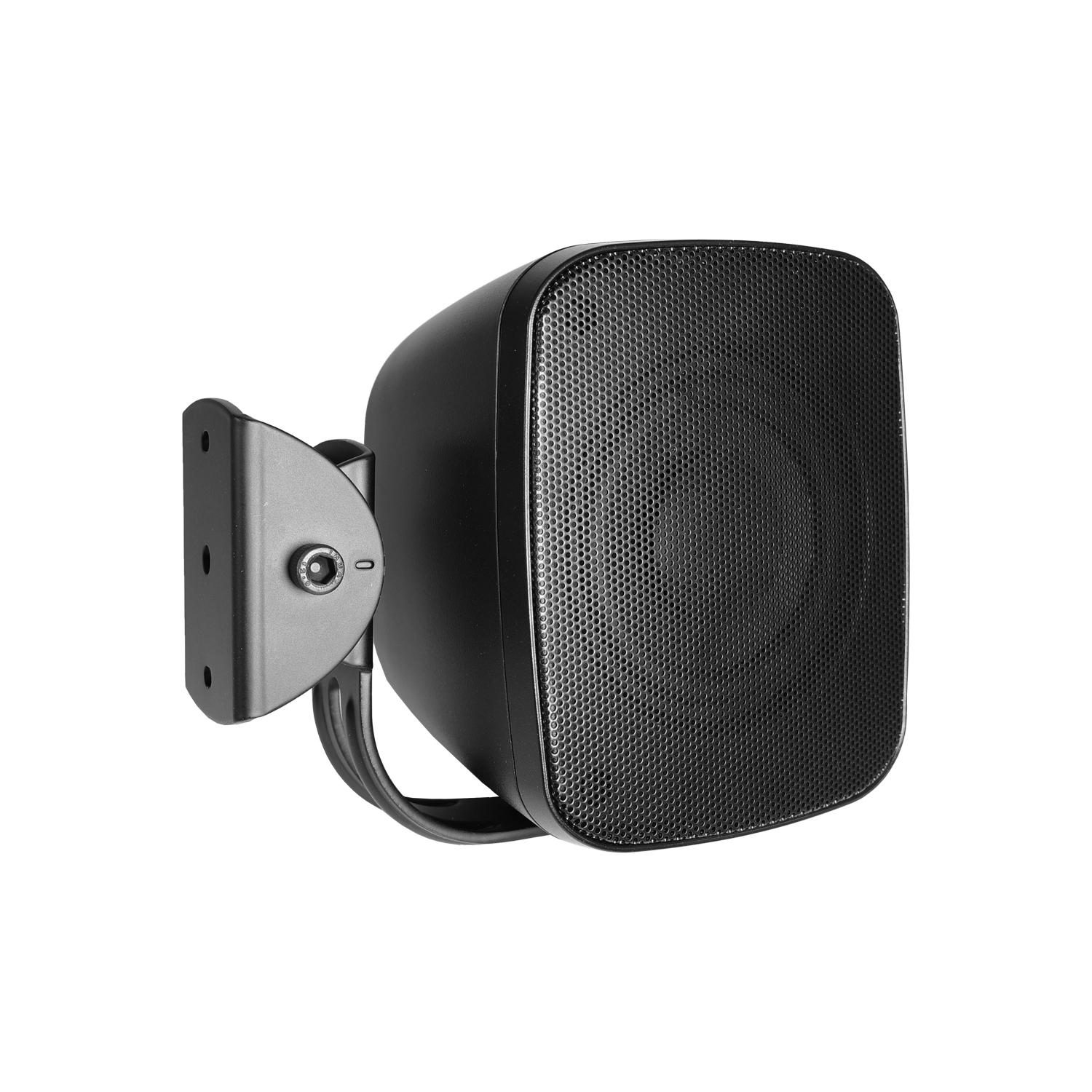

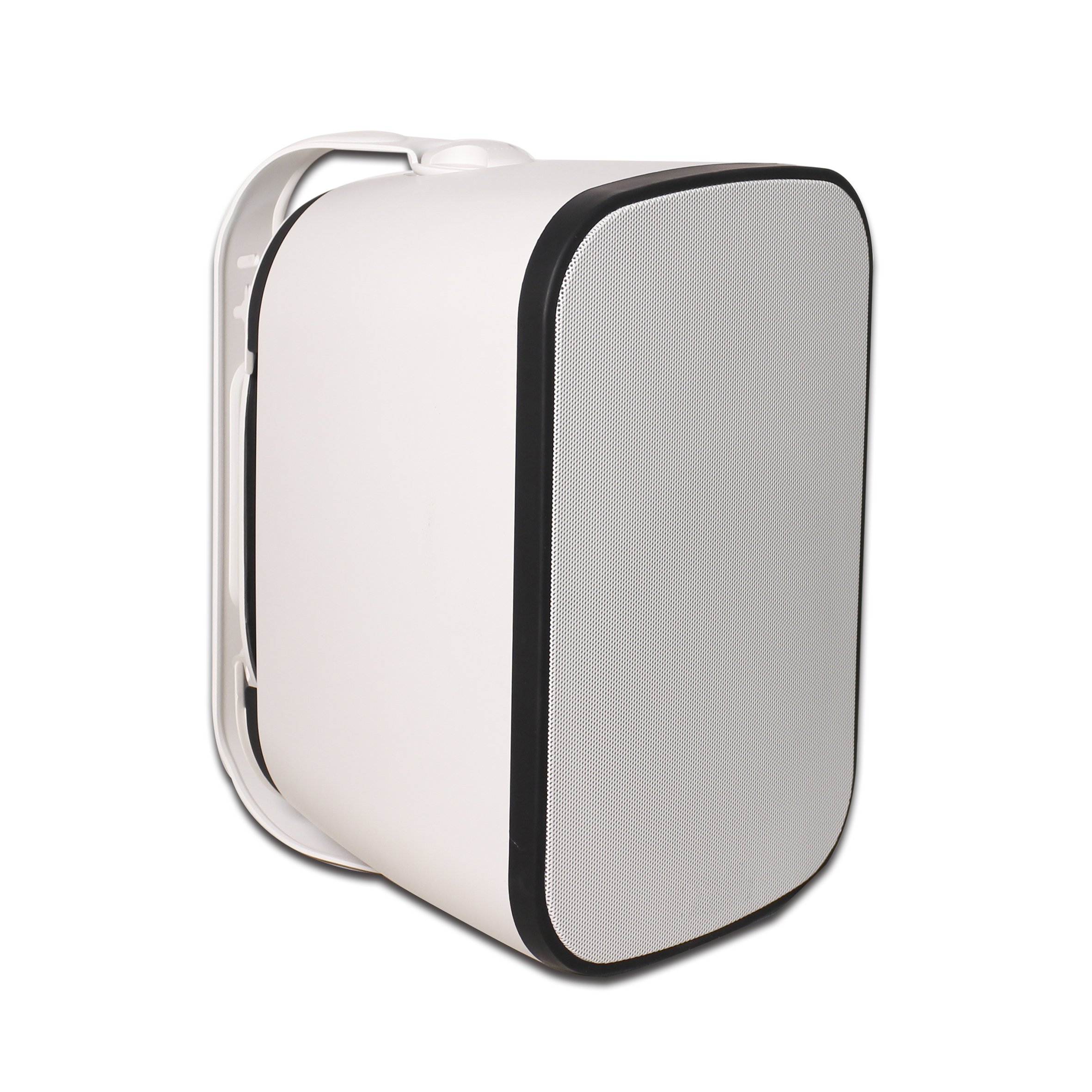

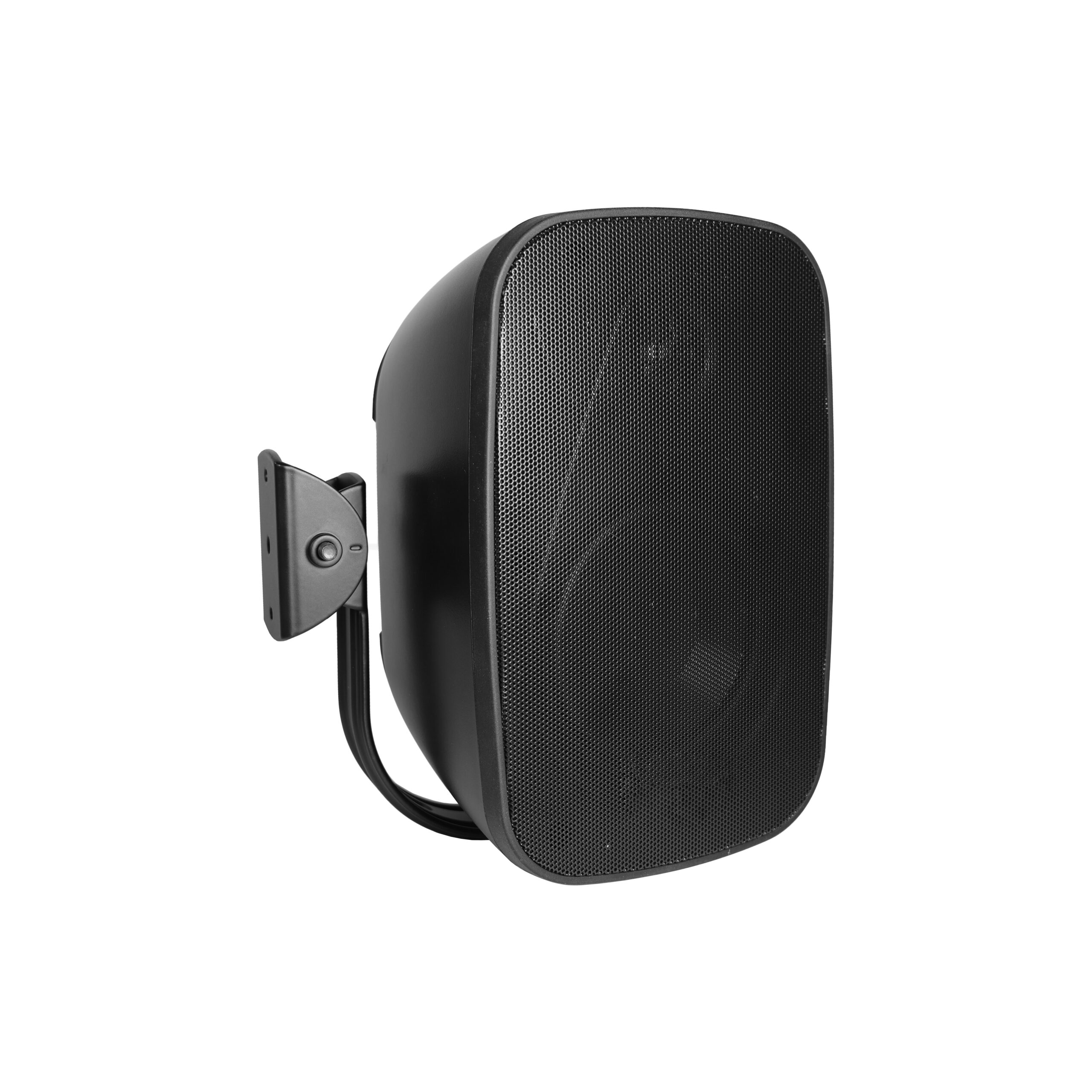

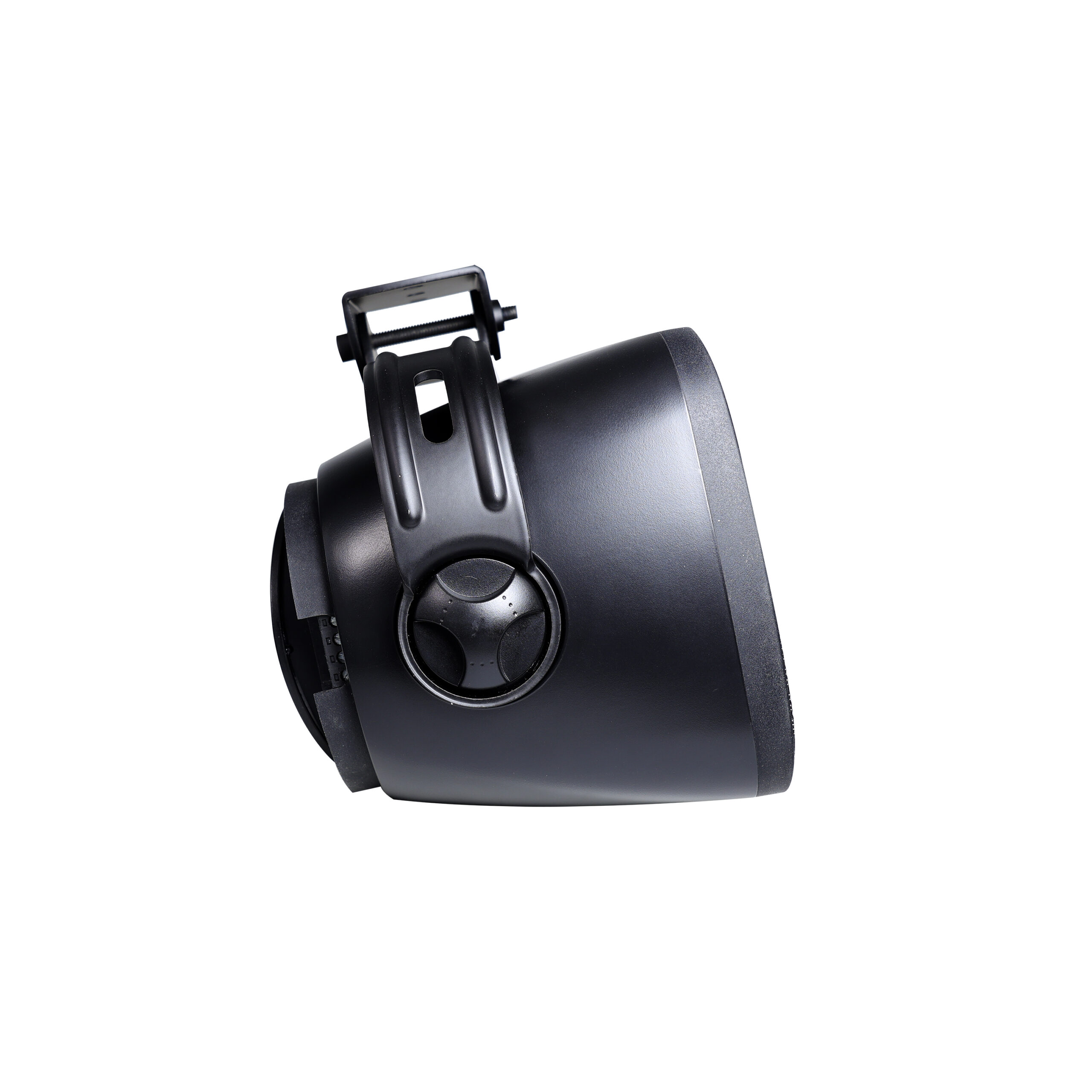

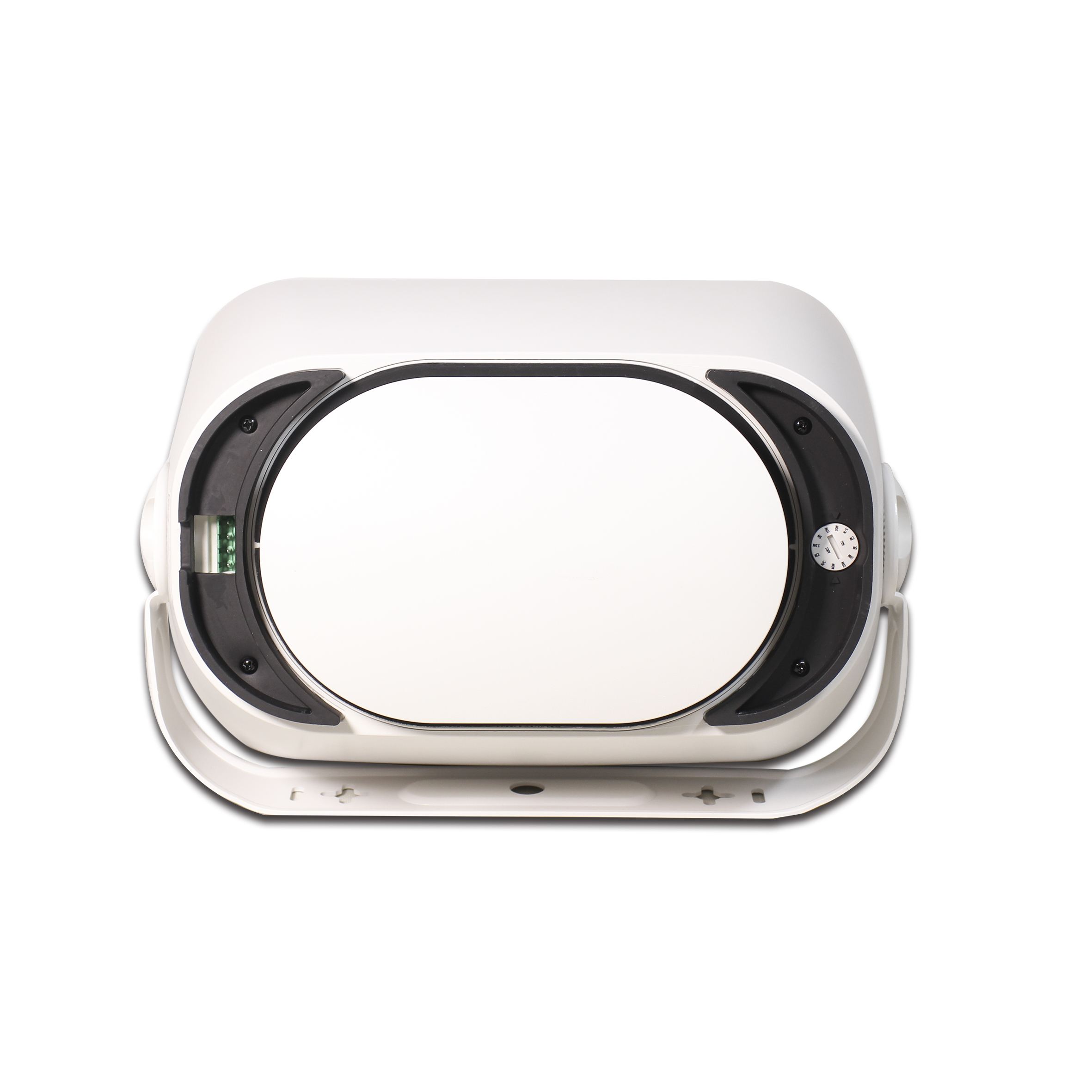

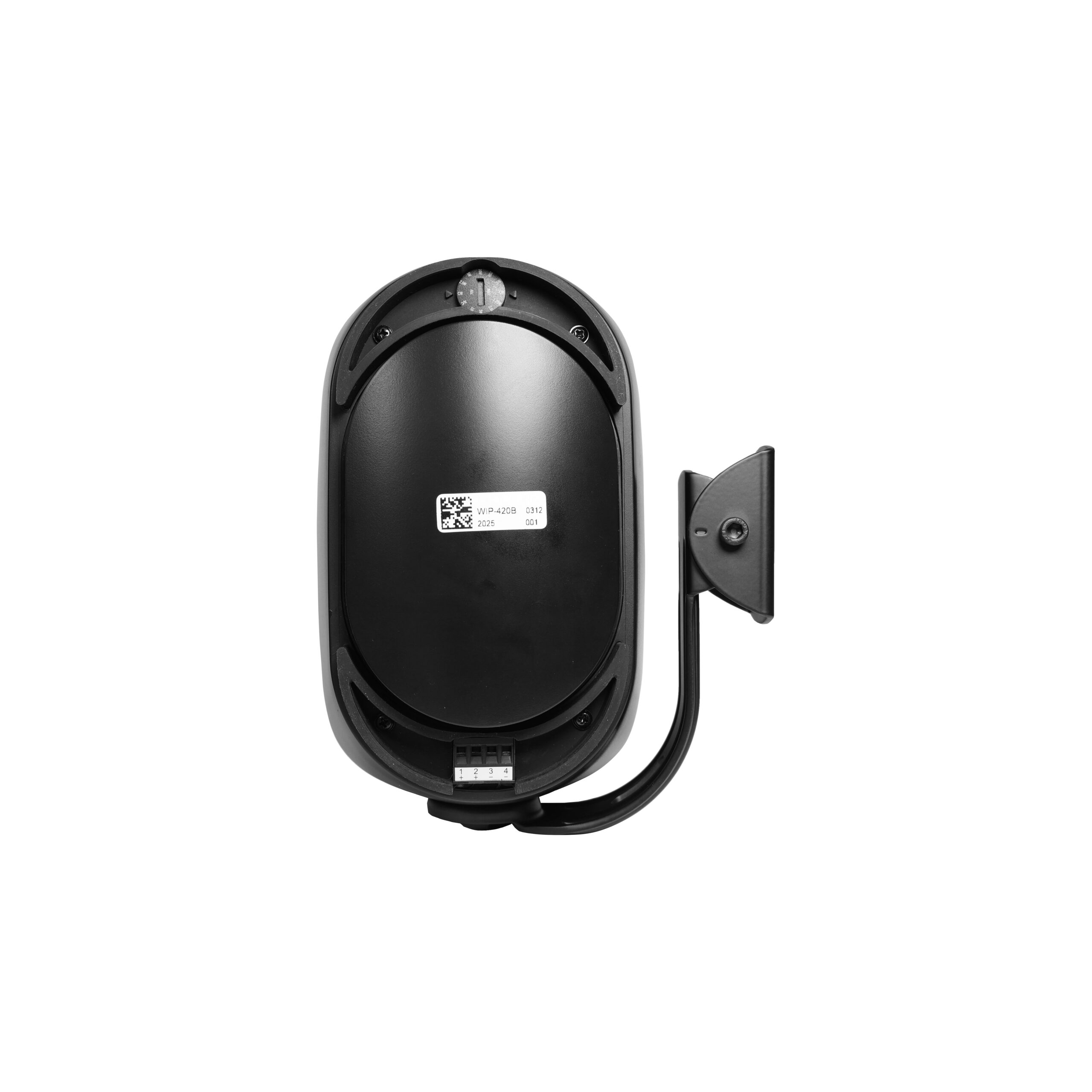

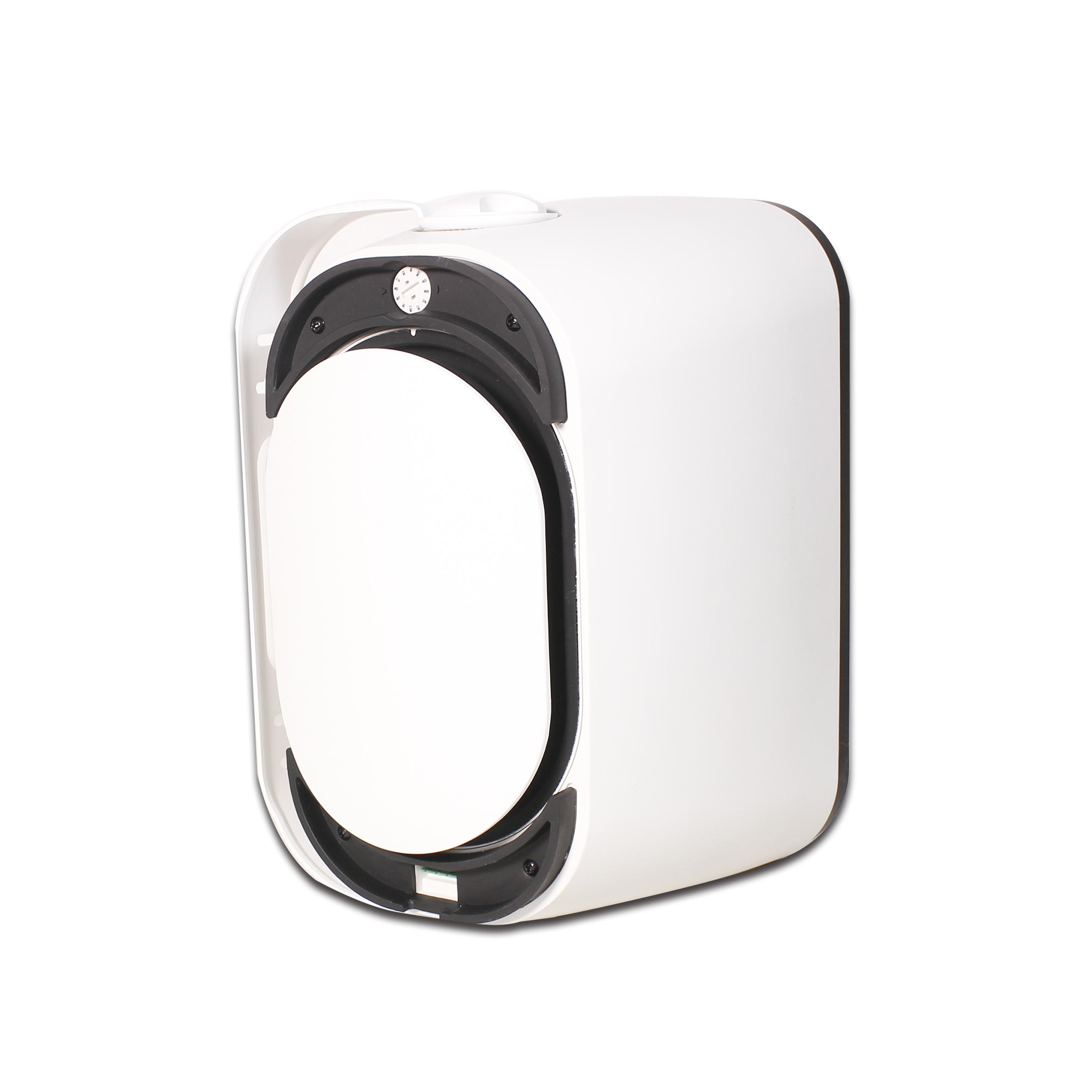

It is a new design IP66 Waterproof outdoor Wall Mount Speaker, which is Beauty, Durability, Performance and User Friendliness. It delivers high quality audio as well as clean and clear announcements for public address systems. The Unique Rear Covers not only helped to cover the Euroblock Connector and Bypass Selector (PA Transformer) in the rear of the speaker, but also designed to merge seamlessly with the OBE Bass Radiator and the overall design of Speakers. Default white color, black color optional.
Features:
|
Model
|
WIP-310W/WIP-310B
|
WIP-420W/WIP-420B
|
WIP-540R
|
WIP-660R
|
WIP-880R
|
|
Power at 100V
|
10W@8ohm/OFF/10/5/2.5
/1.25W |
20W@8ohm/OFF/20/10/5
/2.5W |
2.5W/5W/10W/20W, 40W@8ohm
|
5W/10W/20W/40W, 60W @8Ω
|
6.25W/12.5W/25W/50W, 80W@8ohm
|
|
Power at 70V
|
10W@8ohm/OFF/5/2.5/1.25
/0.75W |
20W@8ohm/OFF/10/5/2.5
/1.25W
|
1.25W/2.5W/5W/10W, 40W@8ohm
|
2.5W/5W/10W/20W, 60W @8Ω
|
3.125W/6.25W/12.5W/25W, 80W@8ohm
|
|
Max SPL @1M
|
92dB
|
96dB
|
98dB
|
102dB
|
105dB
|
|
Frequency Response
|
200Hz-20kHz(+/-3dB)
|
100Hz-20kHz
|
100Hz-20KHz
|
90Hz-20KHz
|
70Hz-20KHz
|
|
Dispersion Angle
|
/
|
/
|
90×80 Degrees
|
90×80 Degrees
|
90×80 Degrees
|
|
Product Size
|
121x101x107mm
|
217x142x140mm
|
285x170x161mm
|
285x200x195mm
|
382x262x240mm
|
|
Installation
|
Wall mount
|
Wall mount
|
Wall Mount
|
Wall Mount
|
Wall Mount
|
|
Enclosure Material
|
ABS
|
ABS
|
ABS
|
ABS
|
ABS
|
|
Weight
|
0.7kg
|
2.1kg
|
3kg
|
3.5kg
|
4.5kg
|
|
Color
|
White/Black
|
White/Black
|
White/Black
|
White/Black
|
White/Black
|
|
Speaker Units
|
3″ Paper Dual Cone, Rubber Surround
|
0.75″ Paper Dual Cone, 4″ Rubber
Surround
|
5” Woofer, 1” Tweeter
|
6.5” Woofer, 1” Tweeter
|
8” Woofer, 1” Tweeter
|
